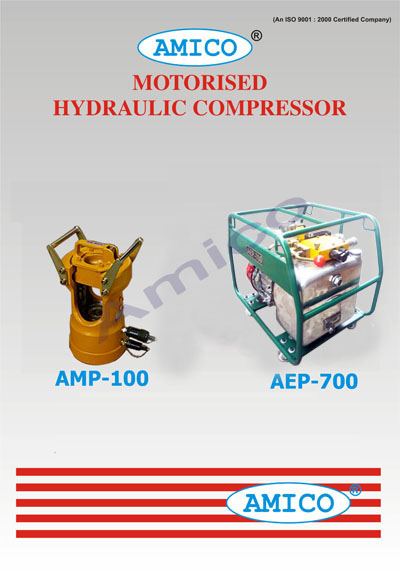

AEP-700 & AMP-100

The AMP-100 or AMP 150 are used with AEP-700 Motorized Engine operated Pumping unit which is very fast & efficiant in operation and has been developed as per international standards, assembled with imported parts.It is pre set to a maximum pressure of 700 bar.It is connected with the press head AMP-100 or AMP-150 through high pressure hose set with quick release couplings for easy fixing & removal of the hose set.The Machine is useful for all Cable & conductor Jointing purpose. The Power Pack or Motorized Pumping unit (AEP-700) is useful for all site operation of cutters, Bolt tensioner, Hydraulic jacks & other portable tools for rescue operation etc.

more...

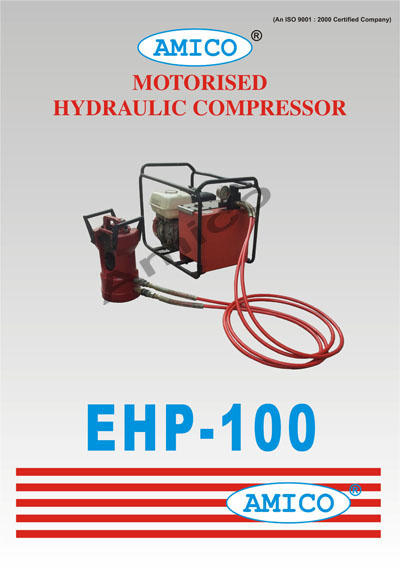

EHP - 100

Operation from compression unit is through high pressure two way valves with neutral position, for immediately stopping the piston at any position. Cylinder is completely honed & hard chrome finished, with piston duly ground to close tolerance. Cylinder is made of high quality alloy steel &is mounted on sturdy steel fabricated frame with handles for easy portability. A small glycerin filled pressu7re gauge is provided on the valve to check the pressure.

High pressure hoses (3.5 Mt) with quick disconnect couplings are provided for easy coupling of the two units. Hose Pipe for desired length can be supplied as per individual requirement. Very handy and light 100 to press unit. Double acting system for an Extremely short pressing cycle and highest reliability.

more...

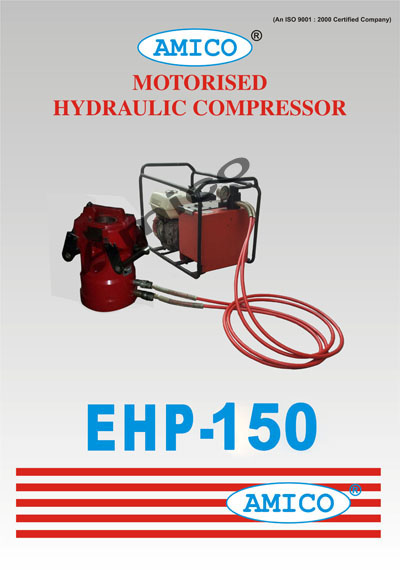

EHP - 150

Operation from compression unit is through high pressure two way valves with neutral position, for immediately stopping the piston at any position. Cylinder is completely honed & hard chrome finished, with piston duly ground to close tolerance. Cylinder is made of high quality alloy steel &is mounted on sturdy steel fabricated frame with handles for easy portability. A small glycerin filled pressu7re gauge is provided on the valve to check the pressure.

High pressure hoses (3.5 Mt) with quick disconnect couplings are provided for easy coupling of the two units. Hose Pipe for desired length can be supplied as per individual requirement. Very handy and light 150 to press unit. Double acting system for an Extremely short pressing cycle and highest reliability.

more...

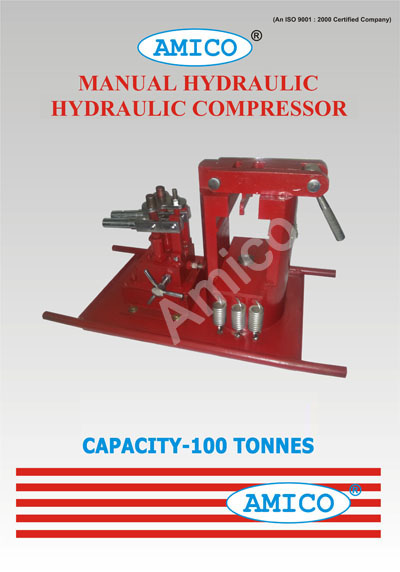

Hydraulic Compressor

Amico manually operated Hydraulic Compressor is used form a k ing compression joint on all AAC/ACSR Conductor & E.Wired etc. It’s a compact machine comprising of cylinder5 block & pumping unit. A centrally mounded pressured gauge is provided to record load during compression. A built in safety valve is provided to check overloading beyond set limit. The unit as a whole is mounted on a sturdy steel fabricated frame with safety handled.

Amico manually Hydraulic compressor is the latest version designed on International standards to attain 100 Ton on just 700 bar pressure, Ram dia of the machine has been increased to 135 mm. Hence lessor operating fatigue & low chance of leakage.

more...

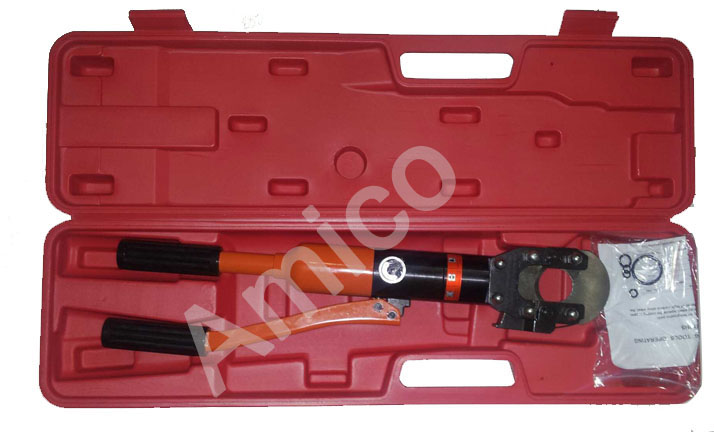

HYDRAULIC CONDUCTOR CUTTER

Amico Hydraulic Conductor cutter is manufactured in callobration with Taiwan based company. The cutter is suitable for cutting various ferrous/non ferrous metal rods, ASCR conductors, E Wires etc.The cutter is very handy weighs only 5Kgs (approx), requires minimum maintenance & requires no setup time. It cuts with speed and is easy to carry at site. Blades are easy replaceable. Flip top latch for easy insertion of cutting material. The conductor/ E wires can now be easily be cut on tower cross arm etc. without requiring a platform.

more...

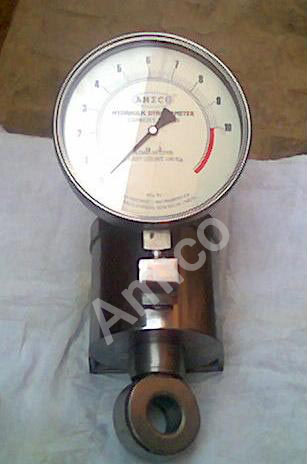

HYDRAULIC DYNAMOMETER

This is light weight measuring Instrument used for measuring load/tension. The instrument is available from 1 ton to 20 Ton range in both direct reading type dial & digital versions to the accuracy of + - 1%. It is totally sealed unit with swivel hook at the one end & a fixed hook at the other, The Instrument is supplied in a steel carrying case.

more...




Digital Dynamometer

Digital dynamometer is useful for checking tension load in the string during stringing is available in the range of 1 ton to 30 ton capacity. the accuracy is +.05%

more...








SAG SCOPE

Sag Scope is used to observe the sagging operation and measure the sag level presisely
Zoom type Sag Scope
Monocular
Optical Magnification factor of 4.0
Can be mounted on steel angles with triangle ranging
from 56 degrees to 125 degrees

more...





Swivel Joint / Articulated Joint

Swivels are used to connect Conductor through mesh sock joint with pulling rope.
Made of high Tensile Galvanized Steel
With protective roller/sleeve on both side spindles to prevent sharp bending of Pilot Eye and Mesh wires
Anti-Twisting Operation



more...

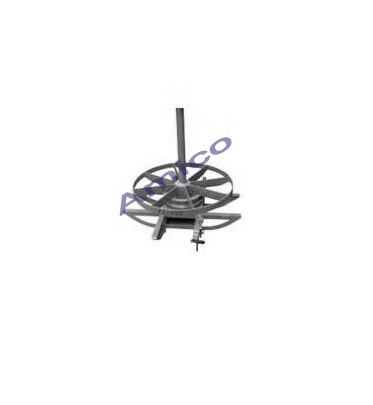

TURN TABLE

Turn Table is used for winding and pay out of Earth Wire during stringing operation
Suitable to support Earth Wire drums
Turn Table with closed type bearing support for convenient and easy revolving motion

more...

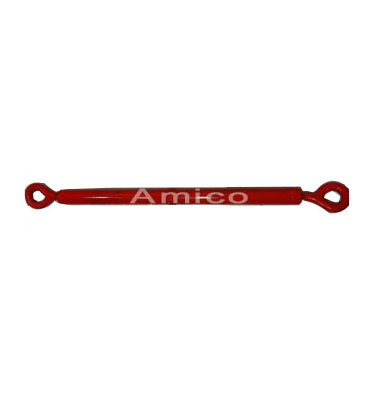

Turn Buckle

Turn Buckle is used to anchor/tight various accessories, conductor and equipments during stringing operation/after end of stringing section.
Made of Galvanized Steel.
Available in dual hook, dual eye and eye-hook configuration



more...




DRUM LIFTING JACK

suitable to lift and hold conductor Drums during Tension Stringing
Capacity of 8 Tons
Body made of forged welded steel section with protective coating or paint
Suitable for use with Wooden Or Steel conductor Drums with traverse width ranging from 700mm to 1300mm for Tension Stringing

more...

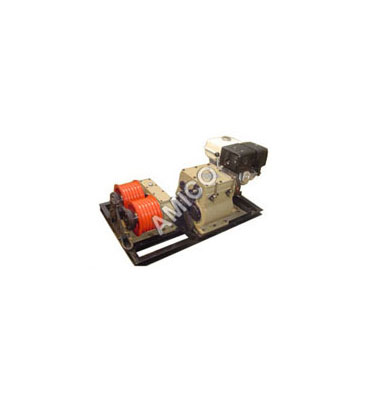

WINCH MACHINE

Winch Machine Double Capstan
Motorized Power Winch Machines are highly useful for pulling and lifting operation with much more convenience and ease in work compared to other heavy vehicles commonly used for the same purpose.
This portable unit consists of Engine Unit, Gear Unit and Capstan/Bull wheel made of cast steel.

Winch Machine Double Capstan Main features are as below:
> Light weight, mobile and easy transport by works at site.
> Can also be used at hilly terrain where tractor and crane are not accessible & feasible to use.
> Supplied with standard Honda GX Series of Gasoline Engines (Diesel Mode is available on request).
> With Anti-fall type protective mechanism to avoid release of load in working condition.
> Available in 3 ton and 5 ton Capacity in single and double capstan configuration (we also supply detachable type configuration and specification of the same can be provided on request)





more...

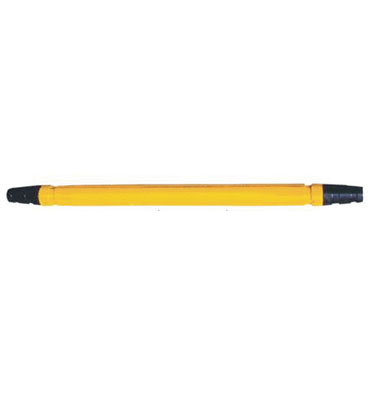

JOINT PROTECTOR

> Joint Protector is used to protect the Mid Span Joint of the Conductor and Earth Wire during passage from pulley and stringing blocks.
> It also prevents the Mid Span Joint fro being in direct contact and abrasion from all the other external objects.
> Body made of forged welded steel section with protective coating or paint
> Center section made of galvanized steel/aluminum alloy material.
> Both the ends are covered with Polymerized rubber coatings to prevent the abrasion of conductor at the entry and exit ends.

more...

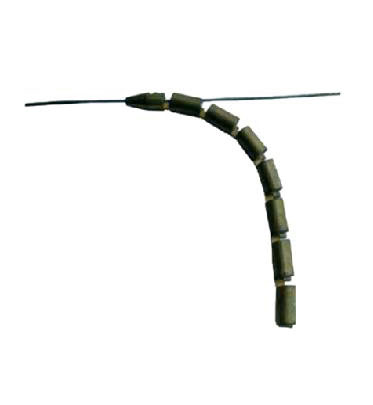

HEAD BOARD

> Running board is used as main guiding device and connects Pulling Rope to OPGW
> It is of automatic balancing type, used in par (tandem with spacing of 2m), and can pass the groove of sheave (width 77mm);
> Suitable for OPGW dia. 11.5mm to dia. 16mm;
> Used in couple (tandem with spacing of 2m);
> Anti-Twisting Torque: 32 N.m;
> Mass: 12.5 kg each and 25 kg per couple



more...

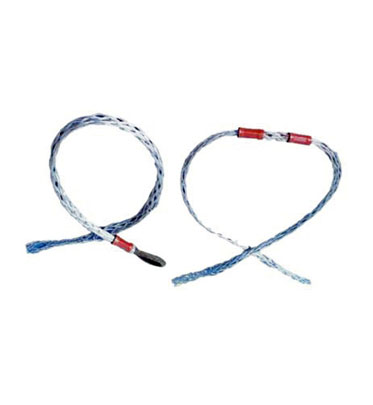

PULLING MESH SOCKS

> Mesh Socks Joint are used to temporary connect the two Conductor lengths OR to connect the Conductor with Pulling Rope / Pilot wire
> Made of High Tensile Galvanized Steel Wires
> Available in Single and Double Head type
> Mesh type structure for proper gripping

more...

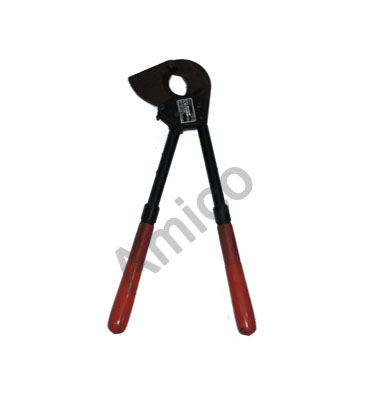

MECHANICAL CUTTER

> It mainly used for cutting ACSR and Cu-Al armored cable.

more...

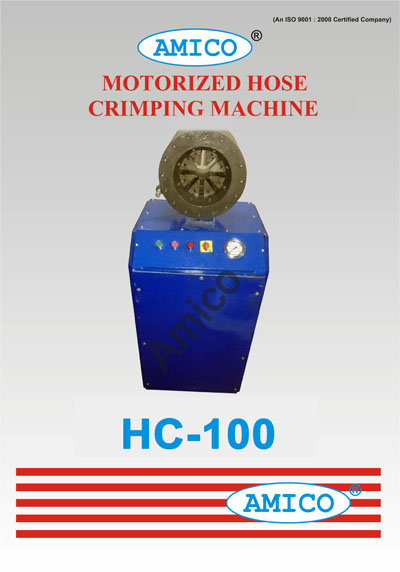

HOSE CRIMPING MACHINE

The most compact and easy to use machine in it's range, Amico HC-100
hydraulic hose crimping machine can be operated even by an unskilled operator.
Features:
> Easy to operate
> Easy to change dies
> High crimping force
> Accuracy of 0.05
> Compact design

more...




Crimping Tool

>The attach pum is with double speed system which ables compression & shorten the    compression time.
> The head is roatteable 180 degree freely to work in narrow space.
> The pump is fitted with safety valve which releases the pressure automatically to prevent     overloading.
> Fibre glass insulated handles are provided to prevent accidental shock.

more...

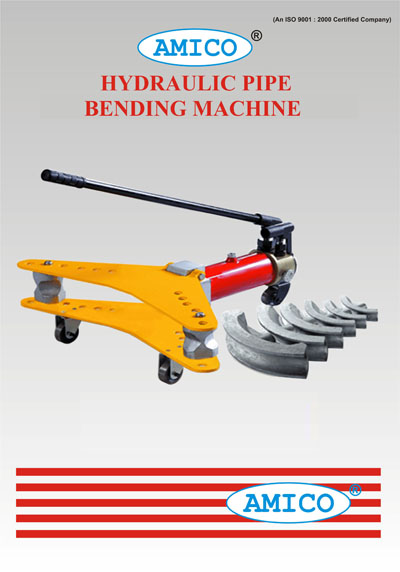

Pipe Bending Machine

> Simple manual hydraulic operation with single Plunger dual action
> Completely manual hydraulic operation so external power is not needed.
> with or without rotating stand locks in three positions for stability and versatility.
> Heavy-duty hydraulic cylinder capable of bending schedule 40 pipe.
> Different standard bending dies included (1/2", 3/4", 1", 1-1/4", 1-1/2", 2",2 1/2",3",4 &        5”).
> Useful for bending Aluminum Bus Bars up to 120mm diameter with thickness of up to 12         mm.

more...

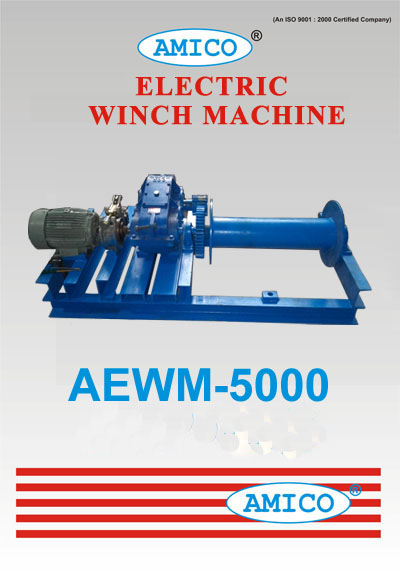

ELECTRIC WINCH MACHINE





Under construction
